TPMK - Kevlar hose

TPMK series Kevlar hose has been created for oleodynamic use at very high pressure. Internal core in thermoplastic polyester (*polyamide), reinforcement with one or more aramidic fiber braids and a high tensile steel braid, exterior covering in polyurethane; on request it is also available micro perforated for the passage of air and compatible gases.

All this series are also available in twin version and, on request, multiple versions, with the same technical features as the single version.

UTILIZATION TEMPERATURE

From -40°C to +100°C Max. working temperature of air, water and fluids containing water: +65°C.

WORKING PRESSURE

As prescribed by SAE standards safety ratio 1 : 4

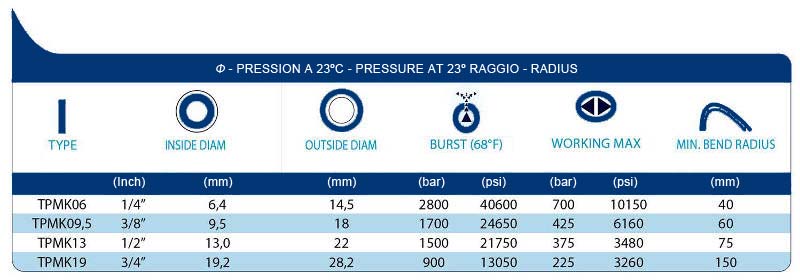

Technical tables

TPMK
technical tables TPMK
