Water Suction Hose

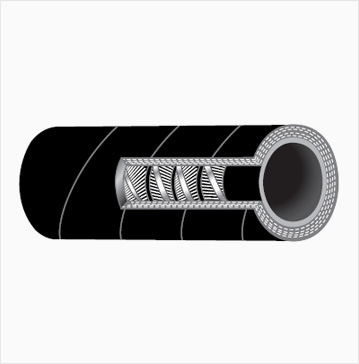

WATER SUCTION HOSE – LIGHT DUTY
Enquire Now
Specifications

Equivalent to IS 2482 of 1982 (Light) There are two types of Hoses in this specification

Type I - Smooth Bore.

Type II - Rough Bore (Semi-embedded)

Construction
Type I
  • Rubber Lining
  • One ply of rubber impregnated fabric
  • Spiral wire
  • Rubber Filler
  • Plies of rubber impregnated fabric & rubber cover
Type II
  • Semi-embedded internal wire
  • Rubber Lining
  • Rubber Filler
  • Plies of rubber impregnated fabric & rubber cover
Application

These hoses are used on Agricultural Pump Sets and other Water pumps.

Availability of Sizes

  • I.D. inches
  • I.D. mm
  • No. Of Plies
  • Max. discharge pressure kgf/cm2
  • 1
  • 25
  • 3
  • 2
  • 11/4
  • 32
  • 3
  • 2
  • 11/2
  • 38
  • 3
  • 2
  • 13/4
  • 45
  • 3
  • 1.5
  • 2
  • 50
  • 4
  • 1.5
  • 21/4
  • 56
  • 4
  • 1.5
  • 21/2
  • 63
  • 4
  • 1
  • 3
  • 75
  • 5
  • 1
  • 31/2
  • 88
  • 6
  • 1
  • 4
  • 100
  • 6
  • 1
  • 5
  • 125
  • 6
  • 1
  • 6
  • 150
  • 6
  • 1
  • 8
  • 200
  • 6
  • 1

Higher sizes can also be supplied but not covered under IS specifications.

Project Quality Double Armoured / Water Suction Hose Heavy Duty

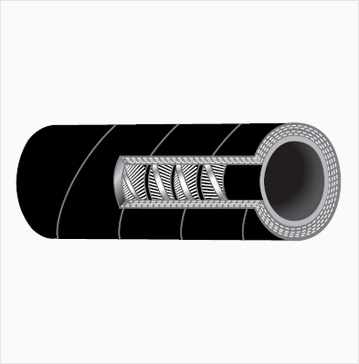

WATER SUCTION HOSE HEAVY DUTY
Specifications

Equivalent to IS-3459 of 1983

Construction
Rough Bore Hose
  • Galvanized mild steel internal wire
  • One ply of Rubber impregnated woven fabric
  • Rubber Lining
  • Plies of Rubberised cotton fabric
  • Galvanized mild steel embedded wire
  • Rubber Filler
  • Plies of Rubber Impregnated Woven
  • Cotton Fabric
  • Rubber Cover
Smooth Bore Hose
  • Rubber Compound Lining
  • Ply or plies of Rubberised textile fabric
  • Galvanized mild steel embedded wire
  • Rubber filler
  • Ply of plies or rubberized textile fabric
  • Embedded wire
  • Rubber Cover

  • End Connection:

    Flanged type or Threaded nipple built in or vulcanized in hose.

Applications

These hoses are used on High Pressure Water Pumps required in various project like irrigation, Coal Mines, Steel Plants, Railways Industries etc.

Availability of Sizes & Recommended Pressures
  • I.D. inches
  • I.D. mm
  • No. Of Plies
  • Discharge Pressure Kgf/Cm2
  • Vaccum Max. Mm Of Hg
  • 2
  • 50
  • 3
  • 7
  • -
  • 21/2
  • 63
  • 4
  • 7
  • -
  • 3
  • 75
  • 5
  • 7
  • -
  • 4
  • 100
  • 6
  • 5
  • -
  • 5
  • 125
  • 7
  • 5
  • 625
  • 6
  • 150
  • 8
  • 5
  • -
  • 8
  • 200
  • 10
  • 5
  • -
  • 10
  • 250
  • 12
  • 5
  • -
  • 12
  • 300
  • 16
  • 5
  • -

Above 75mm, hoses can be supplied in longer lengths but not covered under I.S. specifications. These hoses are supplied with internal & external armour.
