Sand and Gravel Hose (GSG)

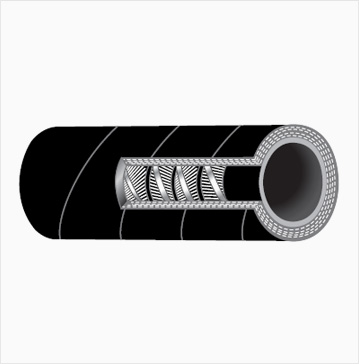

Construction
Tube:
Wear or abrasion resistant
Reinforcement :
Cotton textile reinforcement, fully embedded G.I. steel wire
Cover :
Abrasion & weather resistant
End Connection:
Flanged type or as per Client's requirements
Applications
Extraction and transport of abrasive materials such as Sand, Gravel, Rock, Sludge, Powder, etc
- I.D. inches
- I.D. mm
- Working Pressure Psi
- Test Pressure Psi
- Min. bend radius mm
- 2
- 51.0
- 100
- 150
- 450
- 21/2
- 63.0
- 100
- 150
- 560
- 3
- 76.0
- 75
- 110
- 690
- 31/2
- 90.0
- 75
- 110
- 810
- 4
- 100.0
- 75
- 110
- 900
- 5
- 125.0
- 75
- 110
- 1100
- 6
- 152.0
- 75
- 110
- 1500
- 8
- 204.0
- 75
- 110
- 1850
- 10
- 250.0
- 75
- 110
- 2250
