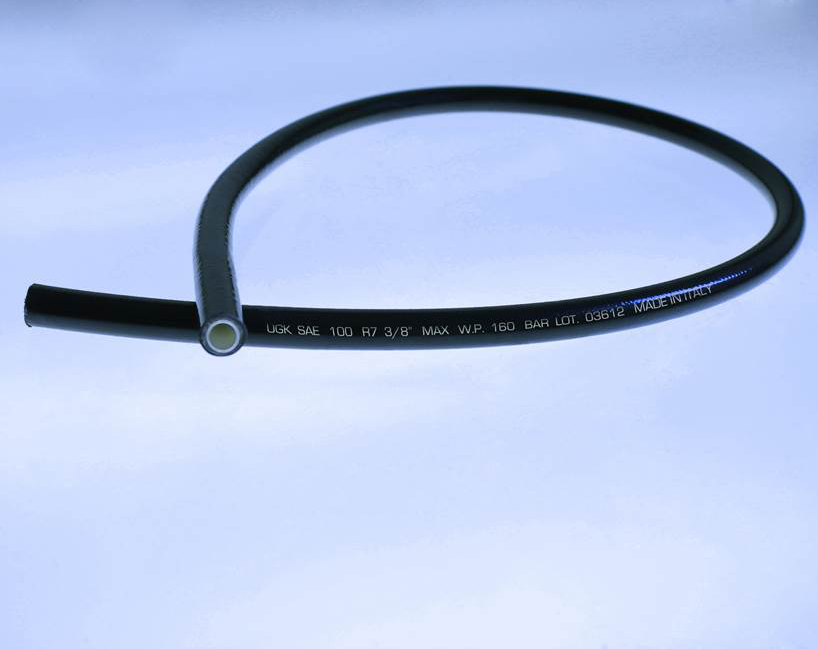

TP7 - High pressure hose r7

TP7 high pressure (R7) hose have been created for oleodynamic use at medium pressure and for the medium conduction of polyols, solvents and paints. Internal core in thermoplastic polyester, reinforcement in polyester fiber, exterior covering in polyrethane; on request it is also available micro perforated for the passage of air and compatible gases.

All this series are also available in twin version and, on request, multiple versions, with the same technical features as the single version.

UTILIZATION TEMPERATURE

From -40°C to +100°C Max. working temperature of air, water and fluids containing water: +65°C.

WORKING PRESSURE

As prescribed by SAE standards safety ratio 1 : 4

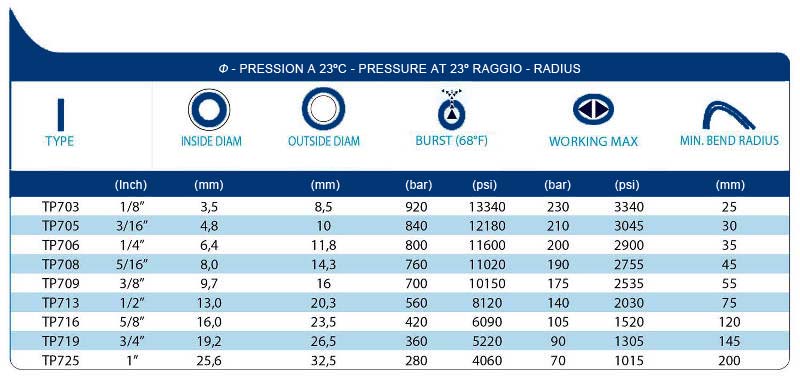

Technical tables

TP7
technical tables TP7
