Shantiflex

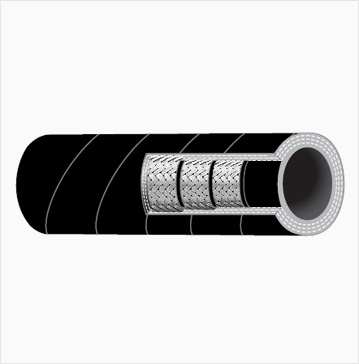

Tripled Wire Braided Hose

Specifications

Confirming to std. SAE – 100 R4

Construction

Tube:
Seamless oil resistant
Reinforcement :
Three Braids of HTS wire
Cover :
Oil and weather resistant
Temperature :
- 40^°C to 100^°C
End Connection:
Swaged or Crimped or Reusable type

Application

For extra high pressure hydraulic oils, fuel, lubricating oils, water and air.

I.D. inches
I.D. Mm
O.D. Mm
Working Pressure Psi
Test Pressure Psi
Min. Bend Radius Mm

^3/16
4.8
16.1
6250
12500
127

^1/4
6.4
17.9
6250
12500
127

^5/16
7.9
20.2
5500
11000
140

^3/8
9.5
22.5
5250
10500
152

^1/2
12.7
25.8
4750
9500
203

^5/8
15.9
29.5
4250
8500
254

^3/4
19.0
34.0
3500
7000
280

1
25.4
41.5
3200
6400
330

1^1/4
31.8
50.8
2500
5000
432

1^1/2
38.1
57.5
2000
4000
533

2
50.8
70.7
2000
4000
673

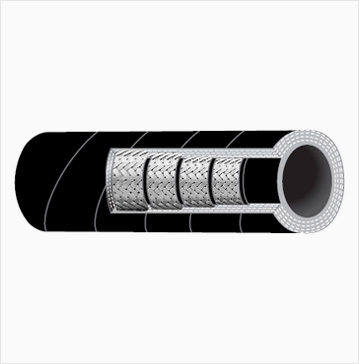

Four Ply Spiral Hose

Specifications

Conforming to SAE 100 R12 / EN 856 R12 Hose construction consists of seamless rubber liner, four spirally wound steel wire ply reinforcement,wrapped in alternative direction and oil, weather and temperature resistant synthetic rubber cover.

I.D. inches
I.D. Mm
O.D. Mm
Working Pressure Psi
Test Pressure Psi
Min. Bend Radius Mm

^3/8
9.5
19.95
16000
24000
125

^1/2
12.7
23.55
16000
24000
175

^3/4
19.0
30.70
16000
24000
240

1
25.4
38.00
16000
24000
300

1^1/4
31.8
47.00
12000
18000
415

1^1/2
38.1
53.45
10000
15000
500

2
50.8
66.70
10000
15000
635

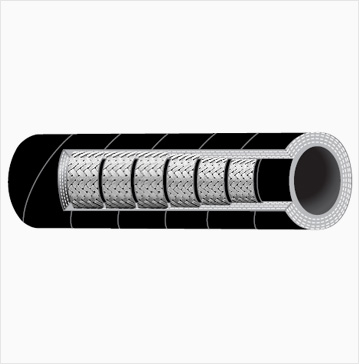

Six Ply Spiral Hose

Enquire Now

Specifications

Conforming to SAE 100 R13 / EN 856 R13 Hose construction consists of seamless synthetic rubber liner with six plies of spirally wound steel reinforcement conforming to the requirements

I.D. inches
I.D. Mm
O.D. Mm
Working Pressure Psi
Test Pressure Psi
Min. Bend Radius Mm

1^1/4
31.8
48.35
5750
8625
610

1^1/2
38.1
56.35
5250
7875
710

2
50.8
71.45
5000
7500
915
