Liquified Petroleum Gas (LPG) Hose

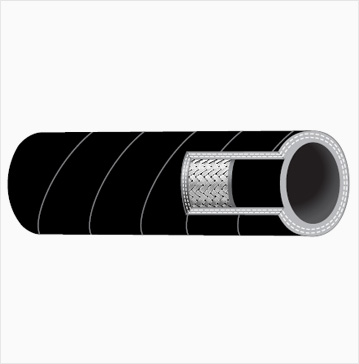

LUQUIFIED PETROLEUM GAS (LPG) HOSE
Enquire Now
Specification

IS 9573 / 1980 OR BS 4089 / BS EN 1762 : 2003

Construction

  • Lining:

    Suitable rubber compound resistant to liquefied petroleum gas

  • Reinforcement :

    The reinforcement shall be of woven textile fabric or braided textile yarn, natural or synthetic or combination of both or braided with HTS wire

  • Cover :

    The cover shall be of rubber compound resistant to abrasion, weather, ozone and petroleum fuel

  • Sizes:

    The hoses are available from 8 mm to 75 mm

  • Test :

    Internal Hydraulic Burst Pressure 100 Kgf/cm2

  • Electrical Continuity :

    Can be provided on a special request

  • End Connections:

    Flanged or threaded type

Application

This hose is suitable for use in LPG vapour phase and LPG/Air installations. This hose can also be put to wet use i.e., permanently filled with liquid and in the temperature range from 0°C to 40°C.
