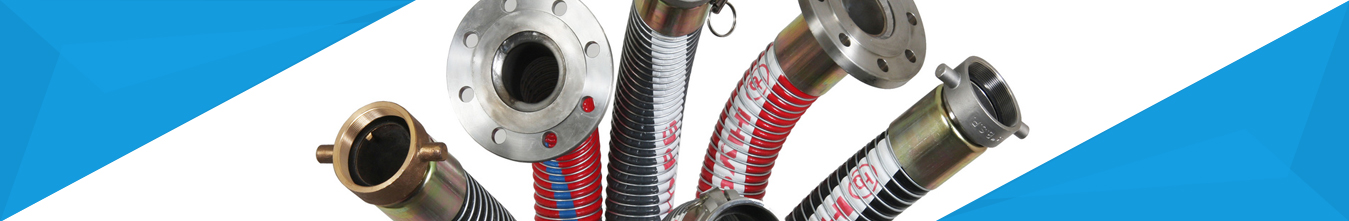

PTFE Lined Composite Hose (GTC)

PTFE Lined Composite Hose (GTC)
Enquire Now
  • Application : Corrosive Chemicals / Alkalies.
  • Construction : Same as Composite Hose - Inside Layer shall be PTFE lined.
  • Temperature : (-40°C) to 120°C. [Hose upto 316°C can be offered]
  • Specification : EN 13765 : 2010
  • Size : 1" to 12"
  • End connections : As per customer requirement duly crimped.

for further information please contact / consult our technical department.

Pressure(Composite / Polypropylene / PTFE Lined Composite Hose)

  •
  • Type 1
  • Type 2
  • Type 3
  • Type 4
  • Maximum Working Pressur (Bar)
  • 4
  • 10
  • 14
  • 14
  • Proof Pressure (Bar)
  • 6
  • 15
  • 21
  • 21
  • Minimum Burst Pressure (Bar)
  • 16
  • 40
  • 56
  • 56
  • Vaccum Rating (Bar)
  • 0.5
  • 0.9
  • 0.9
  • 0.9
  • Working Temperature Range (°C)
  • -20 To +60
  • -30 To +80
  • -30 To +80
  • -30 To +150
