SAE – 100 R2 / EN 853 2SN / DIN 20022 2SN

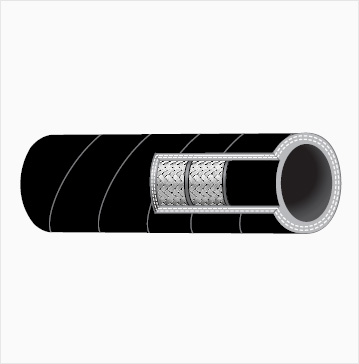

High Pressure Hydraculic Hose R2
Enquire Now
Specifications

Conforming to Std. SAE – 100 R2

Construction

  • Tube:

    Seamless oil resistant

  • Reinforcement :

    One braid of HTS Wire

  • Cover :

    Oil, Weather & Abrasion resistant

  • Temperature :

    - 40°C to 120°C

  • End Connection:

    Swaged or Crimped or Reusable type

Application

For high pressure hydraulic oils, fuel, lubricating oils, water and air.

  • I.D. inches
  • I.D. Mm
  • O.D. Mm
  • Working Pressure Psi
  • Test Pressure Psi
  • Min. Bend Radius Mm
  • 3/16
  • 4.8
  • 14.1
  • 5000
  • 10000
  • 89
  • 1/4
  • 6.4
  • 15.7
  • 5000
  • 10000
  • 102
  • 5/16
  • 7.9
  • 17.3
  • 4250
  • 8500
  • 114
  • 3/8
  • 9.5
  • 19.7
  • 4000
  • 8000
  • 127
  • 1/2
  • 12.7
  • 23.1
  • 3500
  • 7000
  • 178
  • 5/8
  • 15.9
  • 26.3
  • 2750
  • 5500
  • 203
  • 3/4
  • 19.0
  • 30.2
  • 2250
  • 4500
  • 241
  • 7/8
  • 22.2
  • 33.4
  • 2000
  • 4000
  • 279
  • 1
  • 25.4
  • 38.9
  • 2000
  • 4000
  • 305
  • 11/4
  • 31.8
  • 49.6
  • 1650
  • 3250
  • 419
  • 11/2
  • 38.1
  • 56.5
  • 1250
  • 2500
  • 508
  • 2
  • 50.8
  • 68.6
  • 1125
  • 2250
  • 635
