SAE – 100 R4

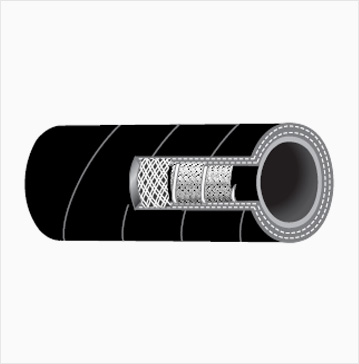

High Pressure Hydraculic Hose R4

Specifications

Confirming to std. SAE – 100 R4

Construction

Tube:
Seamless oil resistant
Reinforcement :
Consisting of braided textile fibres with a suitable spiral of helical wire.
Cover :
Synthetic rubber, Oil Weather and Abrason Resistant
Vacuum :
25^" Hg.
Temperature :
- 40^°C to 110^°C
End Connection:
Swaged or Crimped or Reusable type

I.D. inches
I.D. Mm
O.D. Mm
Working Pressure Psi
Test Pressure Psi
Min. Bend Radius Mm

^3/4
19.0
34.9
300
600
127

1
25.4
41.3
250
500
152

1^1/4
31.8
50.8
200
400
203

1^1/2
38.1
57.2
150
300
254

2
50.8
69.9
100
200
305
