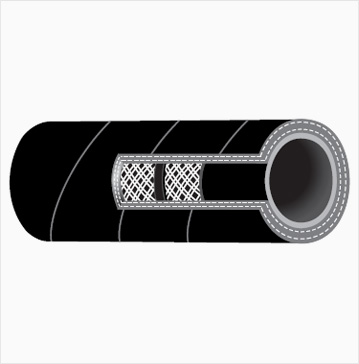

Cable / Furnace Coolant Hose (GFC)

CABLE / FURNACE COOLANT HOSE (GFC)
Enquire Now
Construction

  • Tube:

    Synthetic Rubber

  • Reinforcement :

    Textile reinforcement

  • Cover :

    Cover can be provided with suitable material duly vulcanized or suitable yarn braiding is provided.

  • Temp. Range:

    Upto 100°C

This hose can be supplied in 3 types

  • Working Pressure 10 kgf/cm2
  • Working Pressure 30 kgf/cm2
  • Working Pressure 15 kgf/cm2
Application

Used as Industrial Cooling hose for melting furnaces at steel works, glass works, foundries etc.

  • I.D. Inches
  • I.D. mm
  • O.D. mm
  • Min. Bend Radius Mm
  • 1/2
  • 12.5
  • 23
  • 110
  • 3/4
  • 19.0
  • 32
  • 170
  • 1
  • 25.4
  • 38
  • 225
  • 11/4
  • 31.5
  • 45
  • 285
  • 13/8
  • 35.0
  • 48
  • 315
  • 11/2
  • 38.0
  • 53
  • 345
  • 13/4
  • 45.0
  • 58
  • 405
  • 2
  • 50.0
  • 63
  • 450
  • 21/4
  • 55.0
  • 75
  • 495
  • 21/2
  • 63.0
  • 83
  • 565
  • 23/4
  • 70.0
  • 90
  • 630
  • 3
  • 76.0
  • 96
  • 685
  • -
  • 90.0
  • 110
  • 800
