TPM1 - with steel braid

Enquire Now

TPM1 TPM series hoses have been created for oleodynamic use at high pressure. Internal core in thermoplastic polyester, reinforcement with a high tensile steed braid, exterior covering in polyrethane; on request it is also available micro perforated for the passage of air and compatible gases.

All this series are also available in twin version and, on request, multiple versions, with the same technical features as the single version.

UTILIZATION TEMPERATURE

From -40°C to +100°C Max. working temperature of air, water and fluids containing water: +65°C.

WORKING PRESSURE

As prescribed by SAE standards safety ratio 1 : 4

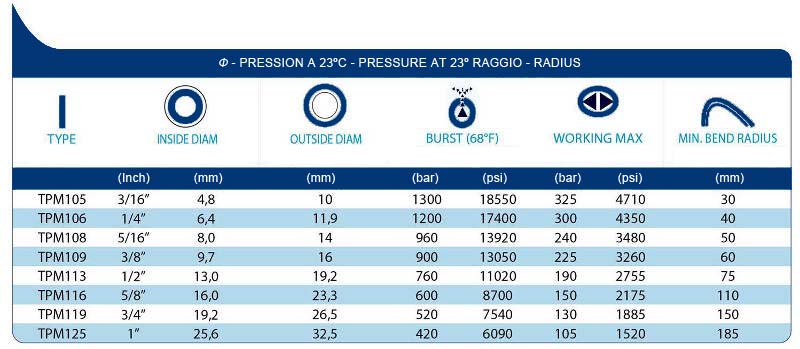

Technical tables

TPM1
technical tables TPM1
