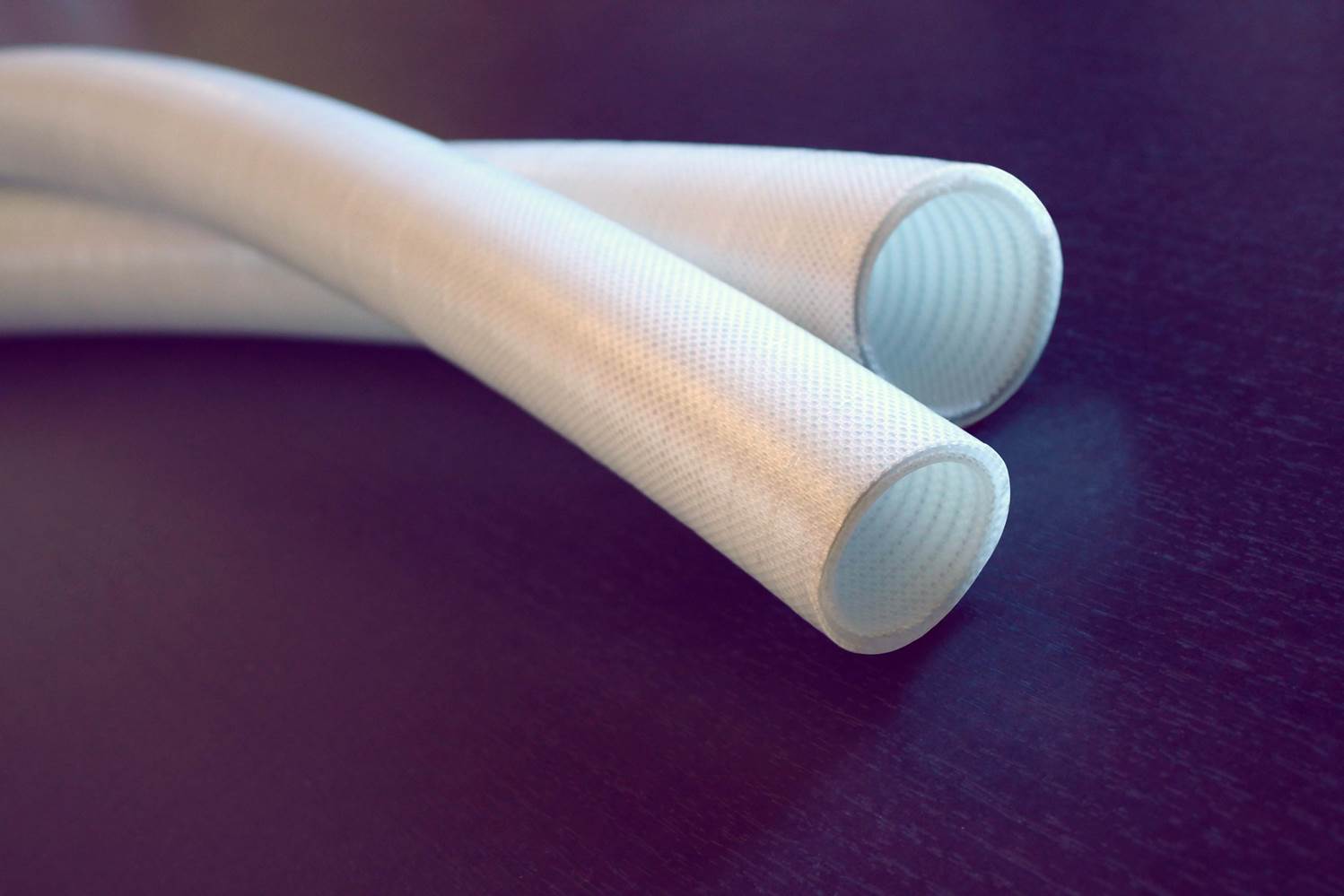

ARMED SIL - Reinforced silicone tubes with ss wire spring

Enquire Now

  • ELASTOMER :

    Platinum Cured FDA silicone

  • TEXTILE REINFORCEMENT :

    Polyester

  • STAINLESS STEEL INSIDE :

    Stainless steel wire spring encased inside the hose

  • INNER APPEARANCE :

    Translucent and smooth

  • OUTER APPEARANCE :

    Translucent, white or coloured

  • LENGTH OF MANUFACTURE :

    On request - Standard length 6mt

  • TEMPERATURES :

    -60°C +200°C (-76°F & 356°F)

APPLICATIONS:

High level of strength. Extremely flexible, even in large diameters. It has been designed for use in specific points with high dynamics and for a very frequent tube handling.

PROPERTIES:

Hoses can be sterilized by hot air at +250°C (+482°F) or with steam at 135°C (+275°F) with a pressure at 3.5bar. Maximum reccomended time: 1h30m at 135°C (+275°F)

The value of the pressure is at room temperature. Reduction of the same by 20% every 100°C of temperature increase.

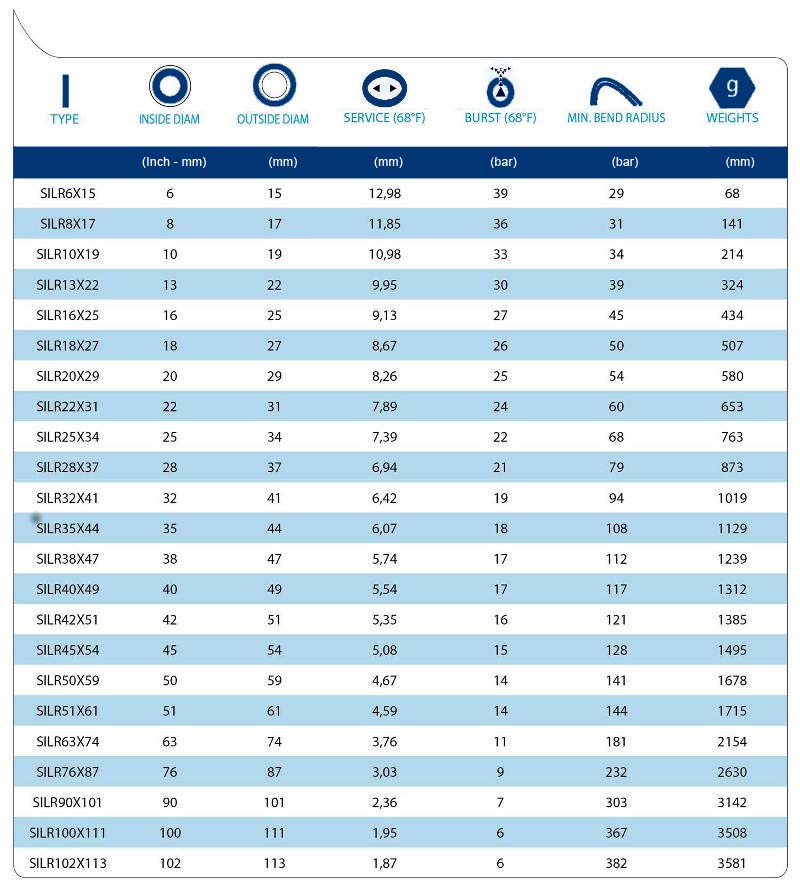

Technical tables

ARMED SIL
technical tables ARMED SIL
