Steam Hose - Type "M"

Specification

As per BS 5122 & IS 10655/ 83. This hose can be supplied also as per BS 796 or BS 924 Type M.

Temperature of Saturated Steam

lbf/in²
Gauge Pressure
Temperature

Kgf/Cm²
Atm
Bar
⁰C
⁰F

25
1.76
1.70
1.73
130
267

30
2.11
2.04
2.07
134
274

35
2.46
2.38
2.42
138
281

40
2.81
2.72
2.76
141
287

45
3.16
3.06
3.11
144
292

50
3.52
3.40
3.45
148
298

60
4.22
4.08
4.14
153
307

70
4.92
4.76
4.83
158
316

80
5.62
5.44
5.52
162
324

90
6.32
6.12
6.21
166
330

100
7.03
6.80
6.90
170
338

120
8.44
8.16
8.28
177
350

140
9.84
9.52
9.66
182
361

160
11.25
10.88
11.04
188
371

180
12.65
12.24
12.42
193
379

200
14.06
13.60
13.80
198
388

225
15.82
15.30
15.53
203
397

250
17.58
17.00
17.25
208
406

275
19.33
18.70
18.98
212
414

300
21.09
20.40
20.70
216
422

325
22.85
22.10
22.43
221
429

350
24.61
23.80
24.15
225
437

Low Temperature Steam Hose (TYPE M)

LOW TEMPERATURE STEAM HOSE (TYPE M)

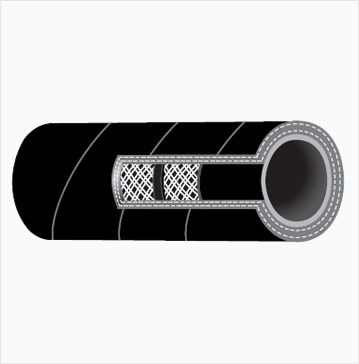

Construction

Tube:
Heat resistant lining
Reinforcement :
Suitable textile reinforcement
Cover :
Heat & Abrasion resistant
Temperature Range :
-30°C to 150°C
Steam Pressure :
5.2 kgf/cm²
Hydraulic Test Pressure :
25 kgf/cm²
Burst Pressure :
50 kgf/cm²
End Connections :
Swaged, Crimped or Reusable type.

I.D. Inches
I.D. Mm
O.D. Mm
Minimum Bend Radius Mm

^1/2
12.7
25
120

^5/8
15.9
28
160

^3/4
19.0
32
190

1
25.4
40
250

1^1/4
31.8
48
320

1^1/2
38.1
54
380

2
50.8
65
500

2^1/2
63.0
83
630

2^3/4
70.0
90
700

Electrical Continuity

It can be supplied on a special request.
