SAE – 100 R3

Specifications

Confirming to std. SAE – 100 R3 / EN 854 R3

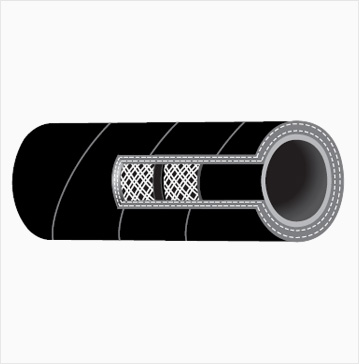

Construction
  • Tube:

    Seamless oil resistant

  • Reinforcement :

    Two braids of suitable textile yarn

  • Cover :

    Oil & Weather resistant

  • Temperature :

    - 40°C to 90°C

  • End Connection:

    Swaged or Crimped or Reusable type

Application

Hydraulics oils, fuel, lubricating oils, anti-freeze solutions and water.

  • I.D. inches
  • I.D. Mm
  • O.D. Mm
  • Working Pressure Psi
  • Test Pressure Psi
  • Min. Bend Radius Mm
  • 3/16
  • 4.8
  • 12.7
  • 1500
  • 3000
  • 76
  • 1/4
  • 6.4
  • 14.3
  • 1250
  • 2500
  • 76
  • 5/16
  • 7.9
  • 17.5
  • 1200
  • 2400
  • 102
  • 3/8
  • 9.5
  • 19.0
  • 1125
  • 2250
  • 102
  • 1/2
  • 12.7
  • 23.8
  • 1000
  • 2000
  • 127
  • 5/8
  • 15.9
  • 27.0
  • 875
  • 1750
  • 140
  • 3/4
  • 19.0
  • 31.8
  • 750
  • 1500
  • 152
  • 1
  • 25.4
  • 38.1
  • 565
  • 1125
  • 203
  • 11/4
  • 31.8
  • 44.5
  • 375
  • 750
  • 254
  • 11/2
  • 38.1
  • 50.8
  • 250
  • 500
  • 305
