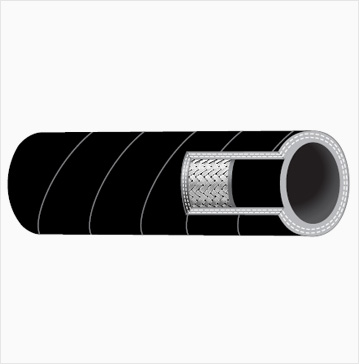

SAE – 100 R1 / EN 853 1SN/ DIN 20022 1SN
Specifications
Conforming to Std. SAE – 100 R1
Construction
Type I
Tube:
Seamless oil resistant
Reinforcement :
One braid of HTS Wire
Cover :
Oil, Weather & Abrasion resistant
Temperature :
- 40°C to 120°C
End Connection:
Swaged or Crimped or Reusable type
Application
For high pressure hydraulic oils, fuel, lubricating oils, water and air.
- I.D. inches
- I.D. Mm
- O.D. Mm
- Working Pressure Psi
- Test Pressure Psi
- Min. Bend Radius Mm
- 3/16
- 4.8
- 11.8
- 3000
- 6000
- 89
- 1/4
- 6.4
- 13.4
- 2750
- 5500
- 102
- 5/16
- 7.9
- 15.0
- 2500
- 5000
- 114
- 3/8
- 9.5
- 17.4
- 2250
- 4500
- 127
- 13/32
- 10.3
- 18.9
- 2250
- 4500
- 140
- 1/2
- 12.7
- 20.5
- 2000
- 4000
- 178
- 5/8
- 15.9
- 23.7
- 1500
- 3000
- 203
- 3/4
- 19.0
- 27.7
- 1250
- 2500
- 241
- 7/8
- 22.2
- 31.8
- 1125
- 2250
- 279
- 1
- 25.4
- 35.6
- 1000
- 2000
- 305
- 11/4
- 38.1
- 44.8
- 625
- 1250
- 419
- 11/2
- 38.1
- 50.6
- 500
- 1000
- 508
- 2
- 50.8
- 64.1
- 375
- 750
- 635
