TP8 - R8 hose

R8 hose
Enquire Now

TP8 (R8) hose has been created for oledynamic use at high pressure and for the high pressure conduction of polyols, solvents and paints. Internal core in thermoplastic polyester, aramidic fiber reinforcement, exterior covering in polyrethane; on request it is also available micro perforated for the passage of air and compatible gases.

All this series are also available in twin version and, on request, multiple versions, with the same technical features as the single version.

UTILIZATION TEMPERATURE

From -40°C to +100°C Max. working temperature of air, water and fluids containing water: +65°C.

WORKING PRESSURE

As prescribed by SAE standards safety ratio 1 : 4

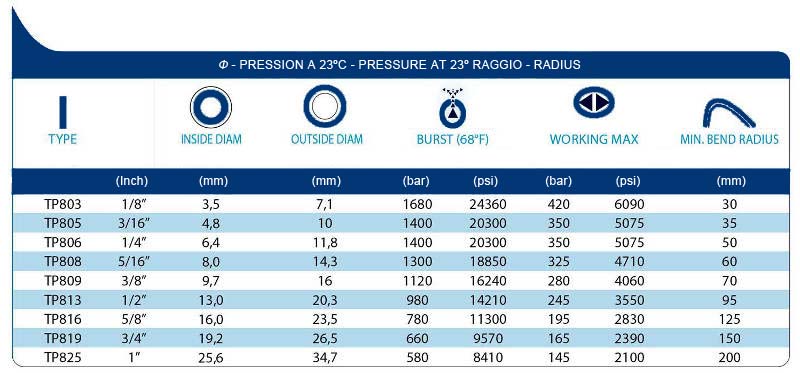

Technical tables

TP8
technical tables TP8
